From the meter to your platform. And back.
BOX2M is the IoT operating system for industrial sites and commercial real estate. It reads every meter and sensor (electricity, gas, water, heat, steam, compressed air), sends the data to the cloud and on to your SCADA, BMS, EMS or VPP. When it matters, it acts: switching loads, batteries and generation over the same path.
What does your industry need to measure?
Six problems we hear on every site visit.
Cash and operations: the bill with the supplier, the cost of maintenance and labour, and the pressure to get connected, compliant and greener.
You know the bill, not where the energy goes.
With BOX2MConsumption per line, machine and tenant, live and in history, so you buy energy and plan maintenance on real data.
Monitoring is locked into a SCADA or BMS vendor.
With BOX2MNo vendor lock-in: any meter brand, an open API, and your data exportable at any time. Most of what a SCADA energy dispatcher does, at 6–8 times lower cost of ownership.
Machines of every age, brand and protocol.
With BOX2MAny certified or metrology-compliant meter, analyser or sensor. Legacy metering and signals are retrofitted, not replaced.
Efficiency programmes start with replacing equipment.
With BOX2MMeasure first: non-invasive, no shutdown, no pipe cuts. Replace only what the data says is worth it.
People walk around reading meters.
With BOX2M24/7 monitoring that doesn't depend on people, with alarms by email, SMS, WhatsApp and voice call.
Energy, utilities and emissions in separate spreadsheets.
With BOX2MCost, energy and CO₂ per product, process or piece of equipment, in one place, ready for ISO 50001 and ESG reports.
Any utility. Any sensor. One platform.
Most sites run on a mix of meters from different vendors and decades. BOX2M reads them all and puts them on one time axis.
Electricity

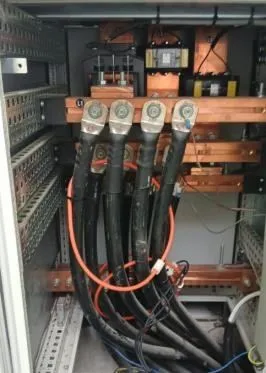

kWh · kW · kvarh · cos φFrom 0.4 kV sub-boards to 110/220 kV substations. CTs, split-core, Rogowski.
Gas

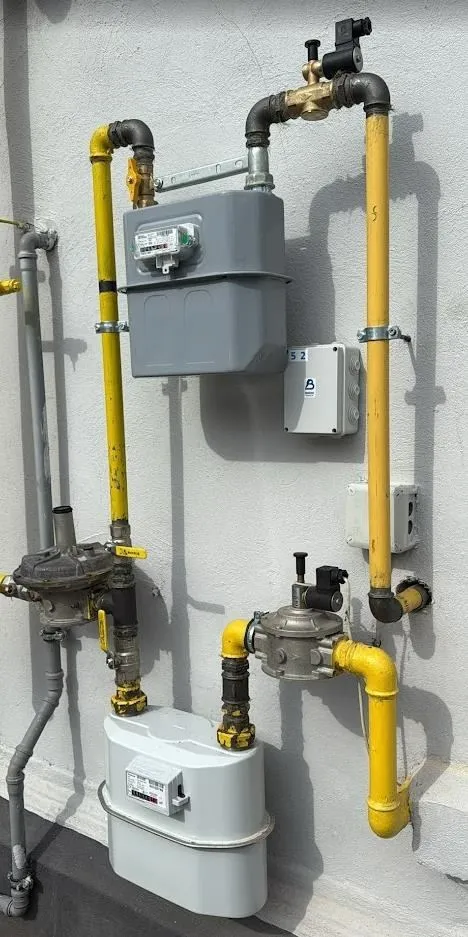

m³ · Nm³Volume correctors and battery-powered readers on existing meters, G1.6 to G100.
Water
m³ · m³/h · °CCold, hot and treated water. Clamp-on ultrasonic probes, no pipe cuts.
Heat
GJ · MWh · °CHeat meters per building, zone or tenant.
Steam
t/h · bar · °CVortex meters on production and consumption lines.
Compressed air
Nm³ · barFlow and pressure at compressors and headers.
Environment
°C · %RH · W/m² · µSv/hTemperature, humidity, irradiance, emissions, particles, gamma radiation.
From the field to the cloud.
Every reading leaves the site encrypted and lands in the BOX2M cloud. BOX2M OS processes it there and makes it available anywhere: in a browser, in your own systems, or as an alarm on your phone.
Collect what matters
- Works with any certified or metrology-compliant meter, analyser, controller or sensor
- Retrofits legacy metering, and the control and actuation of your equipment
- Non-invasive or low-invasive installation
- Collects what matters, not everything
- Independent of your gateways, controllers, hubs, IT and cabling
satellite · fixed1-minute data
as standard
Use it anywhere
- Real-time and historical views, mapped onto your site topology
- Real-time audit and potential energy-fraud detection
- Reports on usage, running cycles and times, processes and trends
- Command and control: on/off and actuation, for process or safety
- Alert as a service, for active and passive processes
- Cost, energy and CO₂ per product, process or equipment
- Structured data, ready for prediction, maintenance and BI tools
- Integration with VPP, SCADA, BMS, WFM, forecasting, audit, GIS and ERP
An operating system for industrial sites and commercial real estate.
An operating system makes any keyboard, disk or printer work and runs the apps you need. BOX2M OS does the same for a site: drivers make any meter or sensor work, services turn readings into data you can trust, apps do the jobs, and an API lets your own systems run on top.
- Add a meter, it gets a driver. Brands already covered include Lovato, Acrel, Honeywell, Itron and Zenner.
- Add a use case, it gets an app: re-billing, alarms, control, maintenance, carbon.
- Add a system, it connects over the API: SCADA, BMS, EMS, VPP, ERP.
- No vendor lock-in. Any meter brand, any platform on top, and your data exportable at any time.
One OS, many jobs.
Pick a job. Each one runs on the same data from the same meters.
Every tenant billed from real data.
Consumption per tenant, read automatically and checked against the contracted maximum, ready for invoicing on your billing day.
- Electricity, water, gas and heat per tenant
- Contractual maximums and billing day
- Export to your ERP or invoicing
BOX2M OSRe-billing · Demo Park · September 2026DEMO DATA| Tenant | kWh | Max kW | Peak kW | Contract | Amount |
|---|---|---|---|---|---|
| A01 · Retail | 18,420 | 60 | 54.2 | Within max | €3,021 |
| A02 · Food court | 26,915 | 80 | 86.7 | Over max | €4,414 |
| B07 · Offices | 9,870 | 40 | 31.5 | Within max | €1,619 |
| C03 · Warehouse | 12,305 | 50 | 47.9 | Within max | €2,018 |
| Common areas | 21,660 | – | 72.4 | Owner | €3,552 |
Alarms that get answered.
Rules on thresholds, formulas, deviations, missed readings and scheduled maintenance. Notifications by email, SMS, WhatsApp and voice call, with acknowledgement.
- JavaScript playbooks that can call HTTP and read prices
- Active and passive processes
- Every event logged
BOX2M OSAlarms · rule and event logDEMO DATAWhatsApp → maintenance group
Voice call → shift lead, acknowledgement required
- 02:14Rule triggered · 0.9 m³/h for 15 min
- 02:14SMS and WhatsApp sent
- 02:15Voice call to shift lead
- 02:21Acknowledged · valve closed on site
Stop exporting when the price is below zero.
Playbooks read day-ahead prices and act on the site for the affected quarter-hours: charge the battery, shift load, or curtail.
- Second control path to the battery, independent of PCS and inverters
- OPCOM and ENTSO-E interfaces
- Virtual feeder to any VPP
Illustrative data for one sunny day. Real results depend on the site, the market and the contract.
Energy and CO₂ per product.
Electricity, gas and steam allocated per line and product, priced with your supplier tariff, in EUR, RON, USD or GBP.
- Per product, process or piece of equipment
- Machine usage and running-cycle reports
- Data for ISO 50001, ISO 9001 and ESG reports
BOX2M OSCost and CO₂ per product · this weekDEMO DATA| Line · product | Units | kWh / unit | € / unit | kg CO₂e / unit |
|---|---|---|---|---|
| Line 1 · Product A, 1 kg pack | 12,400 | 0.42 | €0.058 | 0.11 |
| Line 2 · Product B, 0.5 kg pack | 21,800 | 0.19 | €0.026 | 0.05 |
| Line 3 · Product C, bulk (t) | 38 | 96.0 | €13.25 | 25.0 |
Choose your site.
The same OS, set up for the number each sector runs on.
Factories and industrial parks
Where, when and why energy goes, per line and machine. Energy and CO₂ per product.
Property and facility management
Every meter read automatically. Every tenant billed from real data.

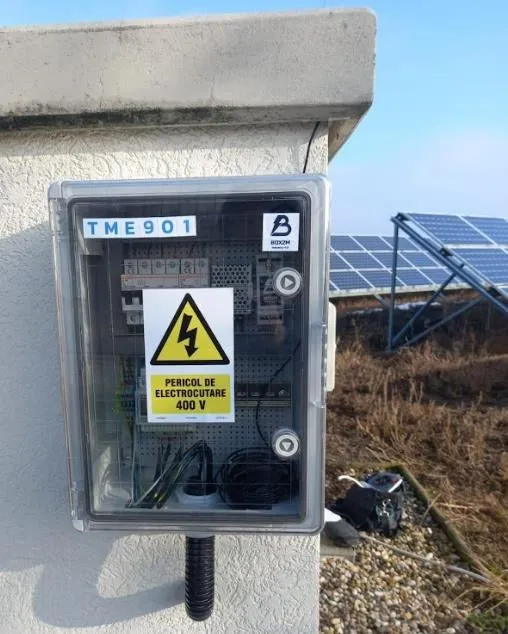

PV, BESS and hybrid C&I sites
Stop exporting at negative prices. Reach the battery without going through the PCS.
Energy suppliers, traders and aggregators
Quarter-hour data and control from customer sites, into your VPP or trading desk.
Utilities and DSOs

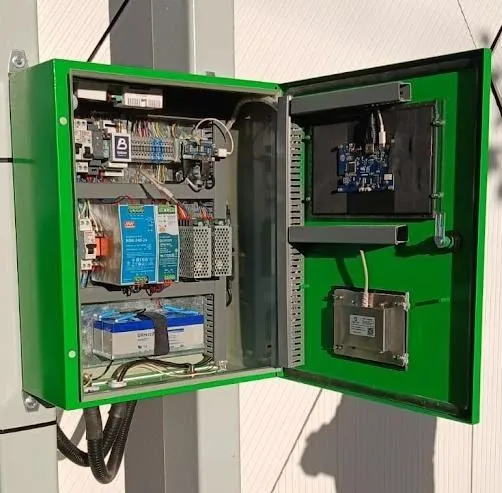

Read existing gas and water meters. Watch substations and isolated sites, by satellite if needed.
Energy and utility audits

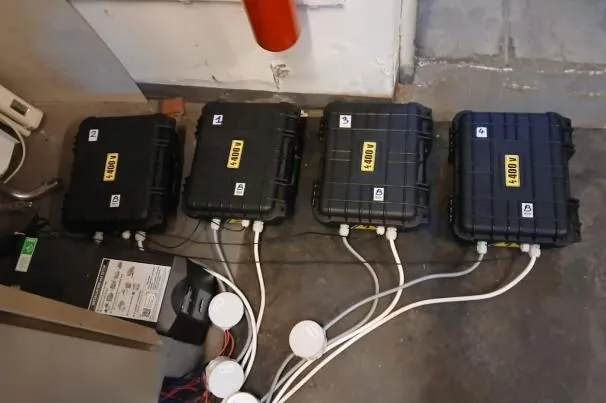

Mobile kits that measure without a shutdown and report straight from the cloud.
Your platform, our field data.
You already have a SCADA, BMS, EMS, VPP or ERP. You don't need another dashboard. You need reliable data from meters and sensors in the field.
BOX2M connects the field, cleans and structures the data in the cloud and delivers it to your platform over API. You keep the interface, the users and the customer. We charge a yearly fee per metered circuit.
- Any meter or sensor. Drivers for the main vendors, new ones on request.
- Devices in over MQTT, data out over API. No lock-in to our screens.
- Grey-label on request, and private cloud or on-premises if you need it.
# Illustrative request. The API reference is available to partners. GET /api/v1/circuits/F-12/readings?from=2026-09-26T13:00Z&resolution=1m { "site": "demo-plant-01", "circuit": "F-12 Compressor line 2", "parameter": "active_power", "unit": "kW", "resolution": "1m", "readings": [ { "ts": "2026-09-26T13:00:00Z", "value": 41.8 }, { "ts": "2026-09-26T13:01:00Z", "value": 42.3 } ] }

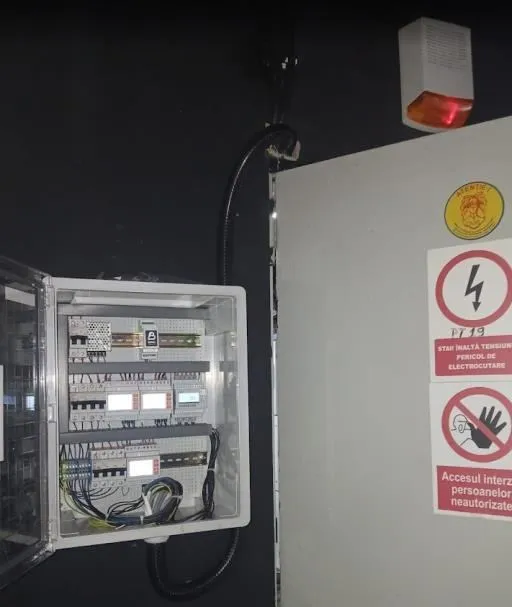

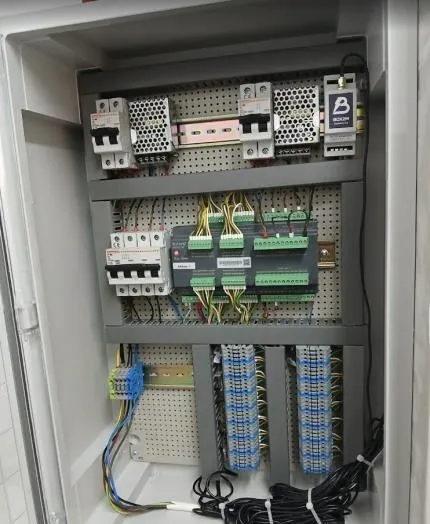

Built and tested in our lab before it goes on site.
Every cabinet and configuration is assembled and tested in the BOX2M industrial IoT lab and cloud test environment, then installed by a specialised technician. The MØ device is CE-certified, designed and manufactured in the EU. Its firmware and our Build & Test platform are registered intellectual property.
Software as a service, per metered circuit.
You subscribe to BOX2M OS for every circuit we meter. The hardware that connects your site and the connectivity come with the service, delivered turn-key.
- Configured for your site and API-ready from day one
- Price set by the number of circuits, the data frequency and the processing (KPIs, events, notifications)
- Plus the features you use on top of the OS
- BOX2M cloud, or a private cloud on your premises

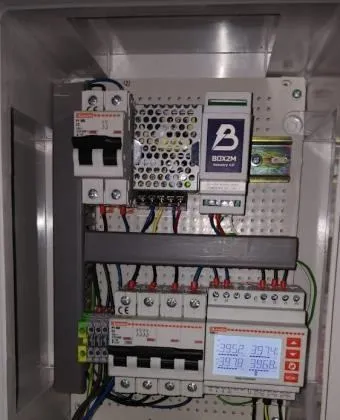

- MØ devices, cabinets, meters and sensors, sized to the number, type and complexity of your circuits
- Tested in our lab, installed by a specialised technician
- Can be bundled into the subscription
- Your own SIMs and network, or provided by BOX2M through partners
- Cellular, LoRa, fixed or satellite
For partners: reselling, royalty and grey-label models. Partners
Start with a pilot, not a national roll-out.
3–10 sites, 90 days, one report: what can be measured and controlled, when, what it is worth, and who earns what.
Concept validation
We agree the goal, the sites and what a good result looks like.
Site survey
An inventory of meters, boards, signals and networks on each site.
Pilot
Installation, live data in the cloud, alarms and a first set of playbooks.
Roll-out
From one circuit to a whole site, from one site to a region.
One page for your sector.
Sent by email on request. MØ datasheets are on Downloads.
PDFFactories and industrial parks
Metering, machine reports, predictive maintenance, API to production apps.
Facility and property managers
Any building type, dispatching control, OPCOM and ENTSO-E, VPP feeder.
Hybrid control for BESS and C&I
Negative prices, second control path, any VPP.
Questions we get first.
Do we need to replace our meters?
No. BOX2M works with any certified or metrology-compliant meter, analyser or sensor, and retrofits legacy metering. We add new meters only where something is missing.
Does BOX2M replace our SCADA or BMS?
No. BOX2M is not a SCADA or a BMS, and it connects to both over API. For energy it covers most of what a SCADA energy dispatcher does, at 6–8 times lower cost of ownership.
Where does our data go?
From the site, encrypted over MQTT with TLS, to the BOX2M cloud, where BOX2M OS processes it. You reach it in any browser and through the API. A private cloud on your premises is also possible.
How is BOX2M priced?
As a service: a yearly fee per metered circuit, set by the number of circuits, the data frequency and the processing and features you use. The site hardware and the connectivity are part of the offer.
How long does a project take?
It depends on the complexity and scale of the site. Every project starts with concept validation and a site survey, then a pilot, then the roll-out.
Can we sell BOX2M under our own brand?
Yes. Reselling, royalty and grey-label models are open to partners, including the MØ device.
Are we locked in?
No. BOX2M works with any certified meter brand and any platform on top. Your data is yours: export it raw or formatted, or pull it over the API, at any time.
What if the site network or IT goes down?
BOX2M runs independently of the site's IT, gateways and cabling. If a device stops reporting, that raises an alarm too.
Tell us about your site.
Send us what you have: a single-line diagram, a meter list, or a few lines about the site. One of our engineers answers within one business day.
