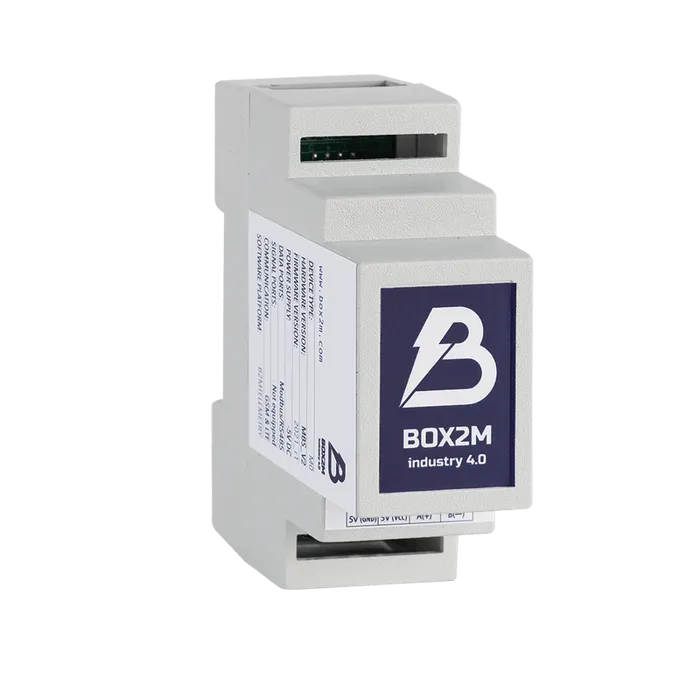

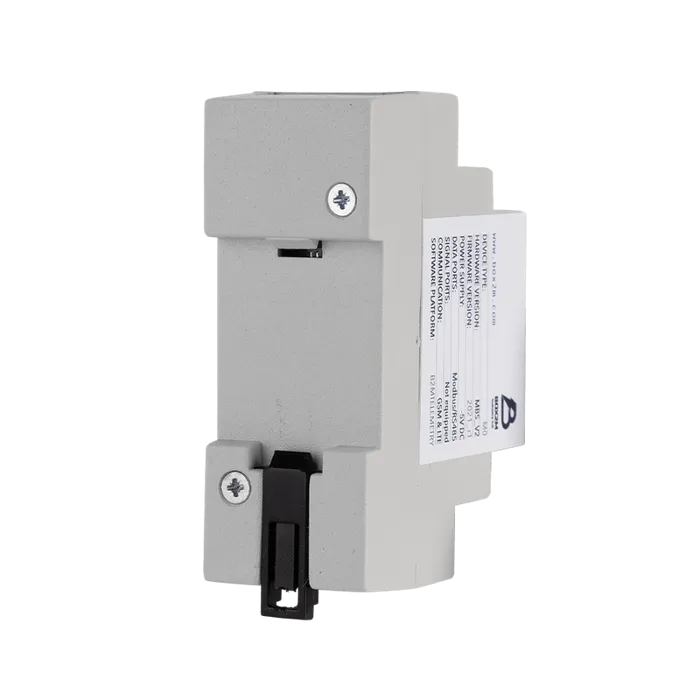

MØ: the industrial IoT device on your DIN rail.
BOX2M's own device reads meters and sensors on site, runs edge logic, and sends data to BOX2M OS or any MQTT platform. Designed and manufactured in the EU, with registered firmware.

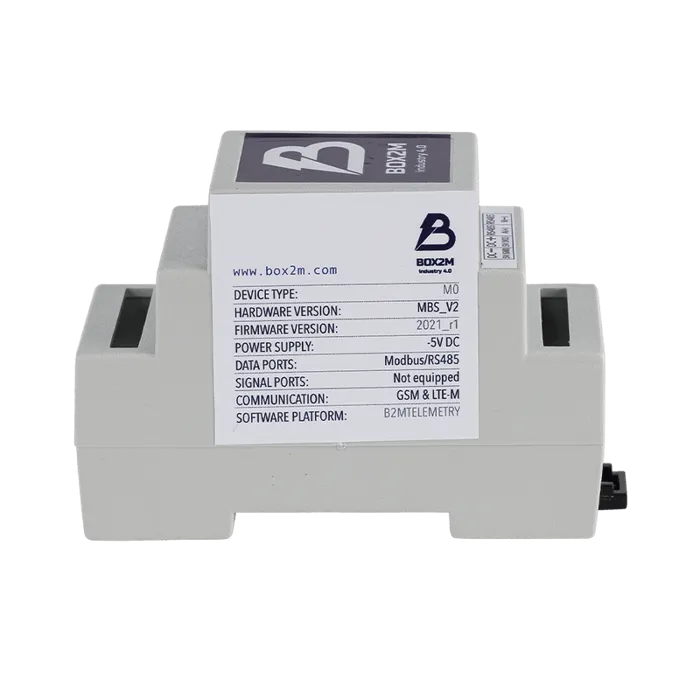

BOX2M · MØ
- Device type
- MØ
- Hardware
- MØ_V2
- Firmware
- MØ firmware ®
- Data ports
- Modbus / RS485 × 2
- Protocol
- MQTT over TLS
- Network
- Cellular, any operator
- Power
- 5 V DC · 230 V AC PSU
- Operating
- −40 to +85 °C
- Mounting
- DIN rail · 2U
- Weight
- 70 g
- Compliance
- CE · RoHS
- Origin
- EU designed and made
What it does
Small device, whole site.
- Reads any vendor: meters, analysers and sensors over Modbus/RS485, directly or through protocol and signal converters.
- Edge computing: firmware built for energy, utilities and environment metering: analysers, flow and concentration calculators.
- Decentralised: independent of the site's gateways, controllers, hubs, IT and cabling. The main monitoring path on site.
- Open: works with BOX2M OS or any MQTT platform.
- Secure: “Falx class” local security mechanism; provisioned and tested with the BOX2M Build & Test platform.
- Grey-label: produced under your brand on request.
Specifications
From the datasheet.
| Group | Item | Value |
|---|---|---|
| Description | Category | Industrial IoT device, cloud telemetry |
| Use cases | Energy, utilities and environment in any industrial infrastructure: factory, multi-purpose building, energy production, distribution and trading, critical site, maintenance and audit | |
| Warranty | 1 year · extension 1–7 years on request | |
| Features | Local interface | Modbus / RS485, 2 connectors |
| Data gathering | Direct over Modbus, or through field protocol and signal converters. Ready drivers for the main energy, utilities and environment sensor vendors; new drivers on request | |
| Cloud transmission | Configurable frequency · MQTT | |
| Electrical | Power supply | External · 230 V AC standard · 110 V AC, 48/24/12/9 V DC options |
| Device input · peak power | 5 V DC · 15 W | |
| Operating temperature | −40 °C to +85 °C | |
| Mechanical | Enclosure | DIN rail, 2U, polystyrene, grey |
| Dimensions · weight | 88 × 34 × 62 mm · 70 g | |
| Connectors | 4, 5 mm pitch screw terminals | |
| Communication | Network | Cellular, any operator · micro SIM, internal slot |
| Antenna | Embedded PCB · optional external via U.FL–SMA |
The datasheet will be updated with the current cellular options before launch.
Delivery and pricing
Turn-key, part of the service.
- Delivered with power supply and protection breaker, configured for your scenario
- Cabinet design, materials, sensors, cabling and connectors on request
- Delivered with the BOX2M OS subscription: device, configuration, installation and a firmware licence per connected circuit
- MØ firmware and the Build & Test platform are registered IP: RNPC Romania, certificate 571214BS no. 10192, 17 Feb 2020
Next step
Put MØ on your DIN rail.
Tell us what you need to read and where. We answer with a configuration.
